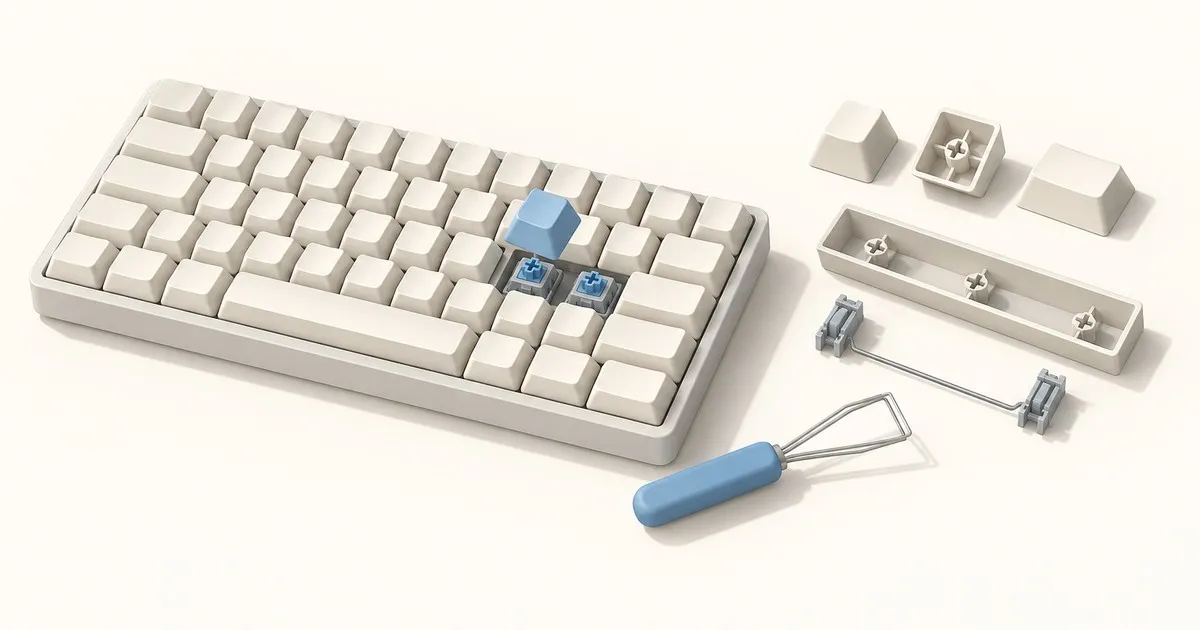

A wobbling keycap can reflect a loose cap socket, movement in the switch, or a stabiliser problem. Start by checking where the movement occurs. The inspection sequence below uses the mount and stabiliser construction described by Deskthority; it is a troubleshooting method for readers, not a measurement report by this desk.
What the joint actually is
The MX mount is a cross-shaped stem on the switch’s slider pushed into a cross-shaped hole inside a cylindrical stem moulded into the underside of the keycap. Nothing clips, nothing latches. The cap is held entirely by interference between two plastic parts.
Deskthority’s Cherry MX mount reference reports Cherry’s keycap socket as a cross 4.1 mm wide with a tolerance of plus 0.05 mm, and arms 1.17 mm wide with a tolerance of plus or minus 0.02 mm. It also records Signature Plastics’ equivalent as a cross 0.159 inches, or about 4.04 mm, wide with arms 0.047 inches, or about 1.19 mm.
These are socket figures reported for two manufacturers. Their difference does not establish the clearance of a particular cap on a particular switch: that would also require the mating stem’s dimensions and the measuring basis for both parts.
The Deskthority reference does not identify a public specification for the mating switch stem. That is a documentation limit of the cited source, not proof that no current manufacturer supplies a drawing. Do not invent a universal clone-stem tolerance range from the socket figures.
An MX-compatible label therefore does not replace checking the actual cap and switch pair when fit is the problem.
Moulding shrinkage moves the target again
Deskthority’s keycap-material reference discusses moulding shrinkage and its dependence on material. That background is a reason to check the finished part, rather than deriving socket dimensions from a plastic name. It is not evidence that every PBT socket is larger or smaller than every ABS socket.
If fit changes after a set swap, compare the caps on the same switch before assigning a cause. Product-specific wall dimensions are covered in keycap wall thickness by material; wall thickness and socket fit are separate checks.
Diagnosis order
Work down this list and stop at the first step that changes the symptom.
- Is it one key or many? One key points at that switch, that cap, or that stabiliser. Many keys point at the set or the switch batch.
- Is the key 1.75u or wider? Stabilisation is normally applied to keys 1.75 units and above, which on a full-size board means both shifts, enter, backspace, and the plus, zero and enter keys on the keypad. Wobble on those keys is a stabiliser question first and a stem question second.
- Move the suspect cap to a neighbouring 1u switch. If the wobble follows the cap, the socket is the cause. If it stays behind, the switch is.
- Put a known-good cap on the suspect switch. This confirms step three in the other direction.
- Check the switch is fully seated in the plate. A switch that has lifted a fraction of a millimetre out of its plate cutout tilts under load and reads exactly like a loose cap.
- Look inside the cap socket. A splayed or cracked cross, usually from a previous removal, is visible against a light and is not repairable.
- Confirm the mount is genuinely MX. Cherry M8 uses a cruciform mount with the same lateral dimensions as MX but a shorter switch stem, and that shorter stem causes keycap incompatibility. Cherry produced an MX-M8 adapter switch variant precisely because the two do not interchange.
Symptom to cause
| Symptom | Most likely cause | What to do |
|---|---|---|
| One 1u key rocks, others fine | Loose socket on that cap, or a worn switch stem | Swap cap and switch in turn to isolate |
| Every key in the set rocks slightly | Cap/socket combination or switch-slider play | Compare with the original caps before replacing parts |
| Cap sits low and bottoms out early | Non-MX stem height, or a cracked socket | Check for M8-style short stem; inspect socket |
| Large key tilts or binds at one end | Stabiliser play or a badly seated stabiliser | Reseat the stabiliser, check wire retention |
| Space bar rocks front to back | Stabiliser movement or cap fit | Check mounting positions and seating against the original bar |
| Cap falls off during typing | Loose or cracked socket, or an incompatible mount | Inspect both mating parts; replace a damaged cap |
Caps that sit too high or too low
Check row identity before treating height as a socket fault. Deskthority’s keyboard-profile reference documents row-dependent sculpting and incompatible vendor row labels. A cap from another row or profile can sit differently without being damaged. Compare its kit diagram with keycap row codes and profile heights.
Next inspect seating. Cherry’s removal guidance describes pressing the cap back onto the switch after inspection. Align it squarely and stop if it resists unusually. Look for visible debris or damage in the socket rather than forcing the cap lower. Compare with an undamaged cap of the same row and profile on that switch.
A single high cap is not enough evidence to diagnose moulding shrinkage, and a low cap does not by itself identify a short-stem switch. Record whether the symptom follows the cap during the swap. That observation narrows the problem without assuming a manufacturing defect from appearance alone.
Large keys are a different problem
Stabilisers exist for two reasons: they stop the key binding by keeping its motion vertical and the cap level wherever it is pressed, and they suppress the play inherent in the switch slider that would otherwise become visible wobble or tilt on larger keys, particularly the space bar. The most common design is the wire stabiliser, a stiff wire running from one end of the key to the other, connected to the cap at both ends and restrained by the plate or PCB.
When a large key wobbles, include the stabiliser in the inspection. Deskthority describes both slider play and the stabiliser’s role in limiting tilt, so movement alone cannot identify a single faulty component. Compare the cap’s sockets and their spacing with the original part. Width and mount positions are covered in keycap sizes explained.
Stabiliser interference after a keycap swap
A key that binds or returns unevenly needs a different check from a loose 1u cap. With the keyboard disconnected, compare slow presses at the centre and both ends using the original cap and the replacement. The wire and mounts described in Deskthority’s stabiliser reference are additional moving parts to inspect.
Check that the mounts align and that the stabiliser housings and wire remain seated according to the board’s assembly guide. Look for visible contact on the cap underside. A tick is an observation, not proof that a thick wall is striking the wire. If only the replacement binds, record that difference before modifying the stabiliser.
Avoid filing the cap, bending a wire or adding lubricant merely to make an incompatible part seat. First establish whether the original part still works and whether the replacement has the required sockets. That comparison is more useful than changing several parts at once.
ISO Enter and stepped Caps Lock fit
Deskthority’s keycap reference records size, shape and mount differences between layouts. For ISO Enter, compare the replacement’s outline and underside mounts with the original cap and the kit drawing. For stepped Caps Lock, check the socket position as well as the visible step and width. Similar legends do not establish identical geometry.
Do not assume a specialty cap is defective simply because the rest of the set fits. First confirm the board’s supported layout and the exact part included in the kit. A wrong part needs a matching replacement; a visibly cracked or misaligned part needs documentation for the seller. Forcing either one onto the board does not resolve the distinction.
Removing caps without creating the next problem
A keycap puller gives access to the socket for inspection. Cherry’s identification guide describes removing a cap with a puller and then pressing it back onto the switch.
Wire pullers, two wire loops on a handle, spread the load across the underside of the cap and are the safest common option. Plastic ring pullers with opposing prongs snap under the cap and are pulled with a finger ring; they work but the prongs bear on a small area.
Folded steel pullers, the flat ones supplied with some Topre boards and some keycap sets, should be used with caution: they have been reported to slip off keys, especially larger keys that need more force, and they can scratch the keycap wall on the way off.
The procedure that avoids damage is unglamorous. Seat the puller squarely under opposite corners, pull straight up along the switch axis rather than at an angle, and on stabilised keys ease each end up a little at a time rather than levering one end free. Never rock a cap side to side to loosen it; that is the motion that splays the cross.
Fixes that work and fixes that do not
Replacing the switch is the reliable fix when the wobble stays with the switch. Replacing the cap is the reliable fix when it follows the cap.
Prefer a matching replacement over an improvised socket shim. The sources here do not establish a tape thickness that safely corrects an arbitrary loose joint, and a shim can conceal damage that should first be inspected.
An accessory intended to alter bottom-out does not establish or correct the dimensions of a loose socket. Keep the diagnosis at the joint that moves before considering changes to the board’s sound or travel.
Tightening the case, changing the plate, or lubing the switch will not change a stem-to-socket mismatch, because none of them touch the joint that is loose.
When to accept it
The cited sources do not provide a universal acceptable-wobble measurement for an assembled keyboard. Compare movement with the original caps and distinguish motion at the socket from motion of the switch slider before declaring a defect.
The threshold worth acting on is when the cap moves enough to change how the key feels under a normal press, when a legend visibly sits crooked, or when the cap comes off in use.
Next steps
The keycap profile and wall thickness sizer provides illustrative profile and thickness presets plus a vendor row-code lookup. Its presets cannot certify the fit of a particular cap and switch pair.
For the dimensional groundwork behind fit, read keycap sizes explained. For replacement row identity, read keycap row codes and profile heights.
